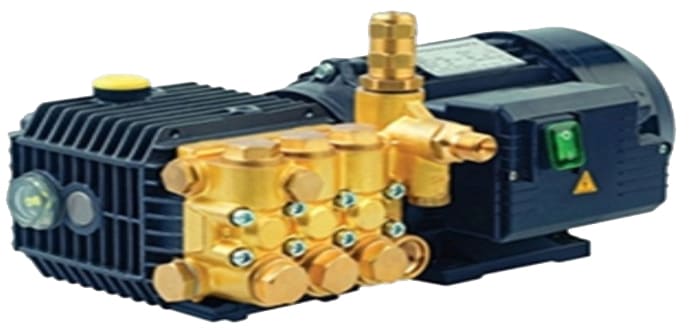

High Pressure Misting Pumps
We are offering various types of High Pressure Motor Pumps. Used when large amount of misting is required for cooling and humidification applications.
Generally, there are two mist pump options available for high pressure misting systems. These include:
- 1000 psi water pump
- 1500 psi water pump
If you invest in a 1500 psi misting pump, you don’t have to worry about low operational performance. Though the pressure of the system is reduced by each additional nozzle but even then, your pump will still be operating between the 1000psi to 1200psi range. High operational performance of the system has a huge impact on the quality of mist produced. With a pump operating between 1000 and 1200psi, you will be able to enjoy ultra-fine mist which evaporates faster and efficiently. And this helps keep your surroundings cool without any wetness on the floor.
So, if you want to enjoy super fine mist and flash evaporation, then consider installing a 1500psi pump. It will cost you a couple of extra bucks but it will surely be worth it. A 1500 psi water pump can help you keep your surrounding unbelievably cool with no wetness.
1000 psi water pump, 1500 psi water pump, high pressure misting pumps, high pressure water pumps, mist pumps,Evaporative Cooling System, Adiabatic cooling kit, Misting fan, Fogging system in textile, Humadification plant, Dust suppression fogging systems, Dust suppression systems, Mist India |
Misting Pump Model | Flow Rates in LPM | PSI | Pressure Bar | RPM | K.W. | HP | Drive |
---|---|---|---|---|---|---|---|
VAI-0.50 | 0.50 | 1000 | 70 | 1440 | 180W | .25 | Direct |
VAI-1 | 1 | 1000 | 70 | 1440 | 360W | .50 | Direct |
VAI-2 | 2 | 1450 | 100 | 1440 | 0.55 | 1 | Direct |
VAI-4 | 4 | 1450 | 100 | 1440 | 1.5 | 2 | Direct |
VAI-6 | 6 | 1300 | 90 | 1440 | 1.70 | 2 | Direct |
VAI-8 | 8 | 1015 | 70 | 1440 | 2.25 | 3 | Direct |
VAI-11 | 11 | 1015 | 70 | 1440 | 2.25 | 3 | Direct |
VAI-21 | 21 | 1160 | 80 | 1440 | 3.75 | 5 | Direct |
VAI-21 | 21 | 1450 | 100 | 1750 | 3.75 | 5 | Direct |
VAI-30 | 30 | 1450 | 100 | 1450 | 5.62 | 7.5 | Direct |
VAI-50 | 50 | 2180 | 150 | 1450 | 11.25 | 15 | Direct |
FAQ's
The heart of any high-pressure misting system is the misting pump. The pump fuels the system by forcing water throughout the lines and nozzles at a high enough pressure that allows the water to atomize as it passes through the nozzles and into its surrounding environment
Using a pressurized pump, misting lines installed with specialty nozzles and water, a misting system pump pushes the water through the lines and nozzles to atomize the water to create micro-droplets that fill the surrounding area.
